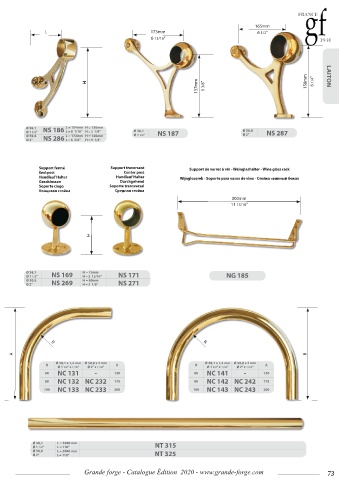

Page 75 - CAT-2020-Edition-WEB-Optimisé

165mm
L 173mm 6 1/2’’
6 13/16’’

137mm 5 3/8’’
H 158mm 6 1/4’’ LAITON

Ø 38,1 L = 154mm H = 130mm
Ø 1 1/2’’ NS 186 L = 6 1/16’’ H = 5 1/8’’ Ø 38,1 NS 187 Ø 50,8 NS 287
Ø 50,8 L = 172mm H = 120mm Ø 1 1/2’’ Ø 2’’
Ø 2’’ NS 286 L = 6 3/4’’ H = 5 1/2’’

Support fermé Support traversant Support de verres à vin - weinglashalter - wine glass rack
End post center post
Handlauf Halter Handlauf Halter wijngloasrek - Soporte para vasos de vino - стойка «винный бокал
Geschlossen Durchgehend
Soporte ciego Soporte transversal
концевая стойка средняя стойка
300mm
11 13/16’’

H

Ø 38,1 NS 169 H = 75mm
Ø 1 1/2’’ H = 2 15/16’’ NS 171 NG 185
Ø 50,8 NS 269 H = 80mm
Ø 2’’ H = 3 1/8’’ NS 271

R R
A B
Ø 38,1 x 1,2 mm Ø 50,8 x 2 mm Ø 38,1 x 1,2 mm Ø 50,8 x 2 mm
R A R A
Ø 1 1/2’’ x 1/16’’ Ø 2’’ x 1/16’’ Ø 1 1/2’’ x 1/16’’ Ø 2’’ x 1/16’’
60 Nc 131 - 130 60 Nc 141 - 130
80 Nc 132 Nc 232 175 80 Nc 142 Nc 242 175
100 Nc 133 Nc 233 200 100 Nc 143 Nc 243 200

Ø 38,1 L = 3000 mm NT 315
Ø 1 1/2’’ L = 118’’
Ø 50,8 L = 3000 mm
Ø 2’’ L = 118’’ NT 325
Grande forge - Catalogue Édition 2020 - www.grande-forge.com 73
