P. 30

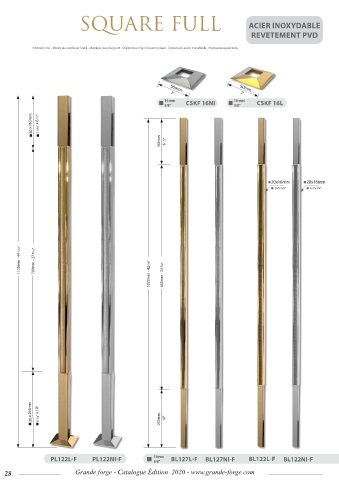

SQuaRe FuLL AcIER INOxyDAbLE
REvETEmENT PvD
Embout inox - Stütze aus rostfreier Stahl - Stainless steel support - Ondersteuning in roestvrij staal - Contera de acero inoxidable - Нержавеющая сталь
50mm
2” 50mm
2”
16 mm cSkf 16NI 16 mm cSkf 16L
5/8” 5/8”
x 165mm x 6 1 /2”
30 1 3 /16”
165mm 6 1 /2”
20x16mm 20x16mm
3 /4”x 5 /8” 3 /4”x 5 /8”
1120mm - 44 1 /16” 700mm - 27 9 /16” 1070mm - 42 1 /8” 650mm - 25 5 /8”
35 x 255mm 1 3 /8” x 10” 255mm 10”
16mm
PL122L-f PL122NI-f 16mm bL127L-f bL127NI-f bL122L-f bL122NI-f
5/8”
5/8”
